Take-out Plate

Product Introduction

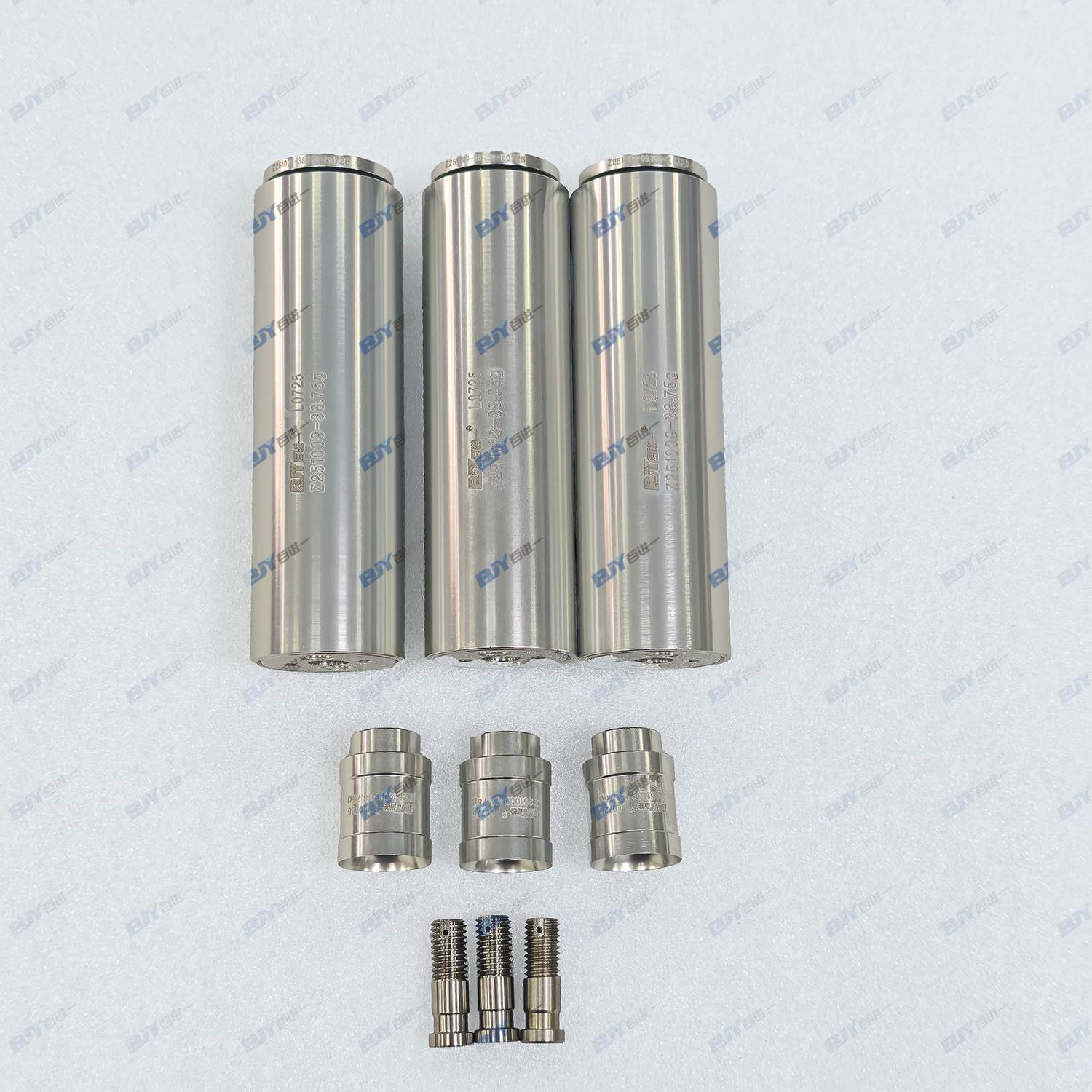

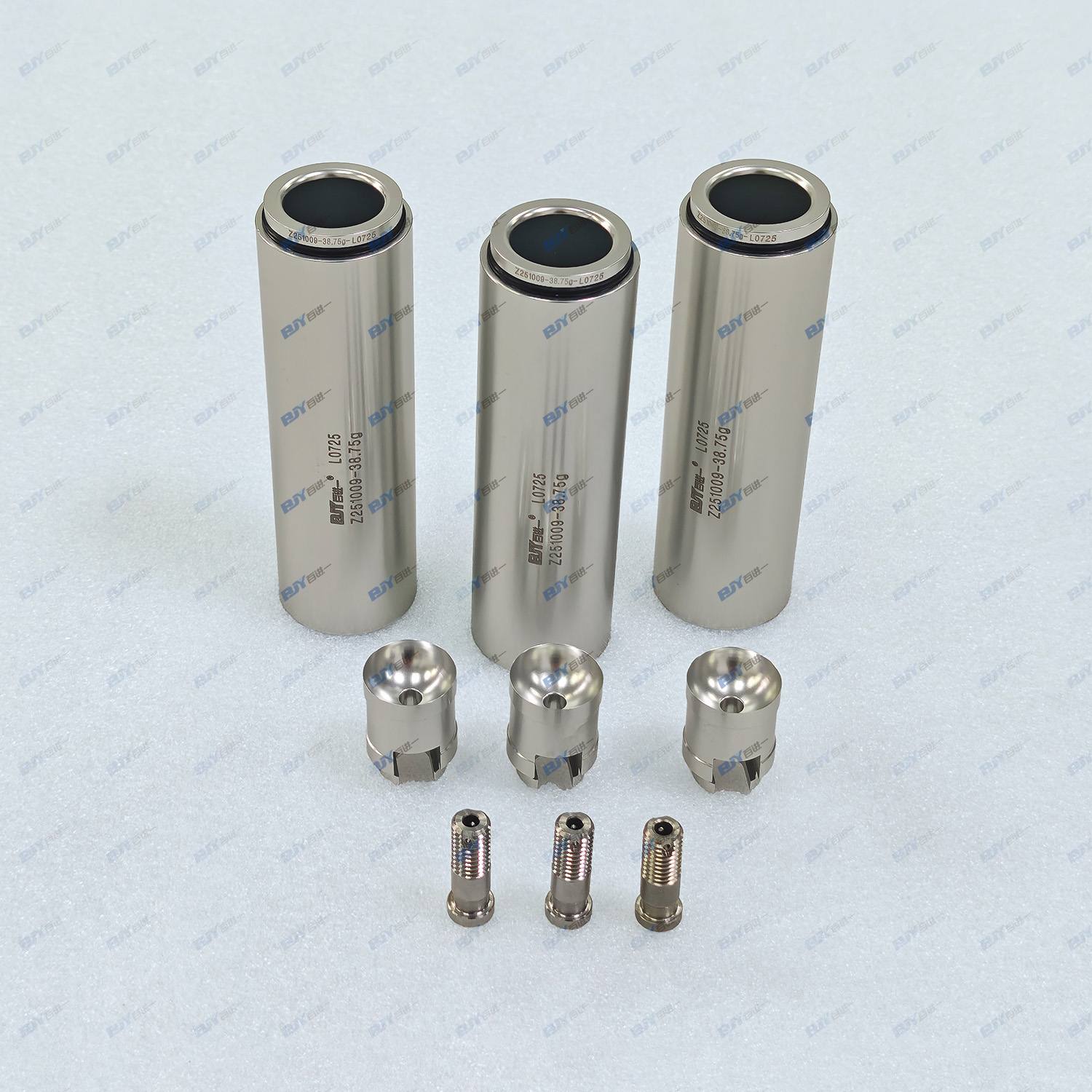

The BJY 35.9×136 Take-out Tube is a precision component designed for PET preform removal, positioning, and transfer in high-speed injection molding systems. Made from high-quality extruded aluminum and precision-machined with CNC technology, it provides stable dimensional accuracy and a smooth, wear-resistant surface for reliable preform handling. Where applicable, it can also support thermal management during the transfer process.

Product Details

Feature	Specification / Description
Product Name	PET Take-out Tube
Specification	35.9×136
Material	High-quality Extruded Aluminum Bar
Manufacturing Process	Precision CNC Machining
Surface Treatment	Hard Anodizing
Surface Finish	Smooth, Low-Friction Surface
Application	PET Injection Molding Systems
Primary Function	Preform Removal, Positioning, and Transfer
Vacuum Function	Vacuum-Assisted Preform Handling
Thermal Function	Supports Heat Management Where Applicable

Technical Functionality in Cooling

The 35.9×136 take-out tube plays an important role in thermal management within PET injection systems. Its primary function is to handle hot preforms immediately after injection molding while helping maintain their dimensional stability. Efficient heat extraction at this stage helps minimize unwanted crystallization and maintain preform clarity. By maintaining a close and precise interface with the preform wall, the tube helps promote controlled and consistent heat transfer. This process supports consistent preform quality for downstream blowing operations and beverage packaging applications.
Material Selection and Heat Transfer Logic

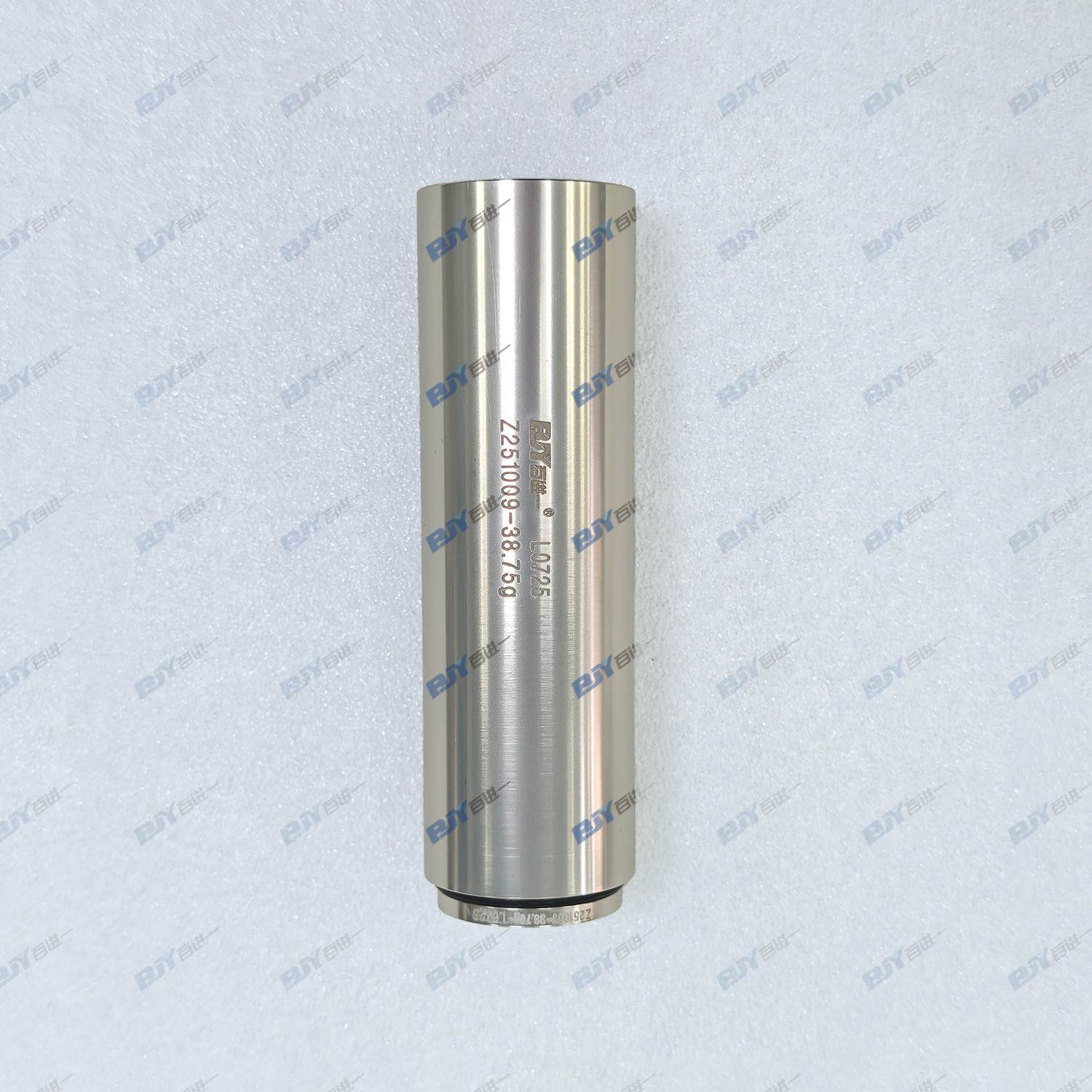

Cooling efficiency begins with the right material selection. BJY favors high-quality extruded aluminum for these components because of its consistent material structure and reliable thermal conductivity. Compared with less uniform material structures, extruded aluminum provides an efficient path for heat transfer and supports stable thermal performance during continuous operation. For beverage production facilities, improved cooling efficiency can contribute to shorter cycle times and higher overall production efficiency.
Surface Durability and Preform Protection

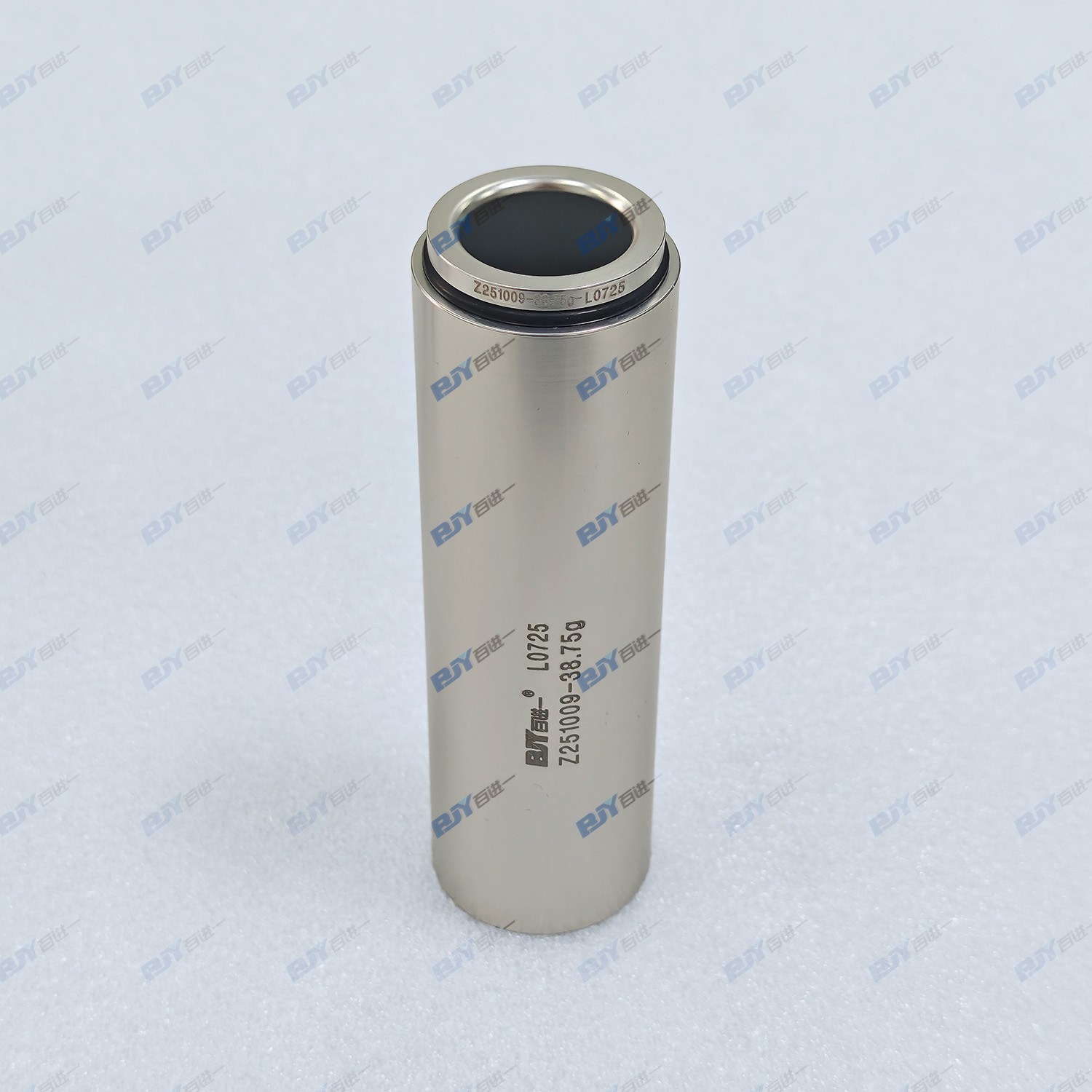

Technical teams often face surface scuffing issues during high-speed operation. To help address this problem, our tubes undergo a hard anodizing process that improves surface hardness and wear resistance. The treated surface provides a durable, low-friction finish designed to reduce contact-related wear during preform handling. This helps minimize the risk of hot preforms sticking to the internal walls and reduces the potential for scratches and related preform defects, supporting a lower overall scrap rate.
Precision Machining for System Reliability

Maintaining tight dimensional control is essential in precision manufacturing. Our CNC machining process controls the dimensional tolerance of these specific components to ±0.02 mm, supporting accurate alignment and reliable vacuum sealing where required. Since 2011, BJY has focused on how dimensional accuracy contributes to stable equipment performance and consistent production. Proper alignment helps reduce mechanical stress on the handling assembly and helps prevent neck deformation during the transfer phase. By supplying components manufactured to precise engineering specifications, BJY helps beverage producers achieve more predictable production performance and longer service intervals with fewer manual adjustments.
