What Are the Different Types of PET Bottle Blow Molding Machines in China
The packaging sector moves quickly these days. PET bottle output keeps shifting along with tech advances and market pulls. China holds a key spot in this shift. It sets up as a main center for building many kinds of PET blow molding machines. Such equipment proves vital for making bottles in fields like drinks, daily care items, and medicine. You might need simple hand-run devices for short production spells. Or you could want complete auto lines that turn out thousands of bottles each hour. Either way, China’s equipment range spans from basic to top-end.
BJY stands out as a key firm in this area. The company has spent more than 20 years honing skills in mold building and design. BJY earned a strong standing for precise PET blowing molds. It offers made-to-order answers that match well with leading worldwide setups.
Classification Based on Machine Operation Mode
Selecting a PET blow molding machine from China requires examining the operation style right away. This factor affects your starting funds outlay. It also influences staff expenses and running smoothness.
Manual Blow Molding Machines
Hand-run blow molding machines fit well for new businesses or study-based uses. Operators must insert preforms by hand. They also have to take out bottles themselves. These setups demand less initial spending. However, they involve greater worker needs and reduced speed. When you aim to build prototypes or create limited groups, this kind brings straightforwardness and budget-friendliness.
Semi-Automatic Blow Molding Machines
Semi-automatic models provide a fair mix of hand work and complete machine control. You continue to place preforms manually. Yet the device handles main actions like warming, air expansion, and release. This arrangement manages average output levels. It achieves better steadiness than pure hand methods. Mid-scale firms frequently select it. They seek growth without entering expensive full automation.
Fully Automatic Blow Molding Machines
For quick-paced, large-volume tasks, total automatic blow molding machines prove necessary. These arrangements control all phases automatically. They include preform insertion, warming, air blowing, and removal. Consequently, this ensures even standards. Errors occur less frequently. And production reaches peak levels. Numerous Chinese producers supply newer types. These incorporate fitted sensors and auto-check tools. As a result, they make the making process even more efficient.
Classification Based on Mold Cavities
Automation plays a significant role. Still, the quantity of mold cavities serves as another important aspect. It connects directly to your making capacity.
Single-Cavity Blow Molding Machines
These devices make one bottle each round. They work best for small-scale or very specific bottle patterns. Their basic structure allows simpler washing and fixing. This advantage helps when facing regular pattern shifts or test productions.
Multi-Cavity Blow Molding Machines
Devices fitted with several cavities—from two to twelve or beyond—deliver strong large-scale making abilities. They call for more detailed cooling arrangements and accurate mold setup. Nevertheless, they achieve much higher work rates. Multi-cavity synchronized operation significantly enhances production efficiency.
Classification Based on Bottle Application
PET bottle uses cover diverse sectors and fill situations. Devices typically group by their backing for hot-fill or cold-fill ways.
Cold-Fill Bottle Blow Molding Machines
Cold-fill devices suit items like spring water and bubbly soft drinks. These fill at room or cooled states. The setups skip heat-durable substances. They commonly aid light bottle structures as well.
PET blowing mold for Krones cold filled blow molding machine stands created to connect smoothly with rotary blow molding gear from Krones. It deals with sizes from 50ml to 2500ml, cavities use A6061 aluminum. These molds fulfill tough guidelines for water, CSD, HR, and sterile tasks.
Hot-Fill Bottle Blow Molding Machines
Hot-fill blow molding devices become vital if your items demand germ killing or filling over 85°C. Such cases apply to juices, teas, and sauces typically. These devices employ unique preforms. They rely on molds that endure heat pressure without bending.
Hot filled Blowing machine for Sidel gets developed for fast rotary making conditions. This equipment adopts innovative designs such as high-temperature resistant fixtures and an efficient cooling system, which can ensure stable forming parameters after hot filling. The bottle blowing mold is made of high-quality S136 steel and aviation-grade aluminum alloy, featuring outstanding durability and maintaining stable performance even under high-temperature stress.
Classification Based on Blowing Technology
The approach for using air force in bottle building further determines the PET blow molding machine type to choose.
High Pressure Blow Molding Machines
These devices function over 30 bar force. They enable shaping intricate bottle forms with sharp features and provide better wall evenness and clearness. Thus, they suit high-end packaging needs. In those, appearance weighs equally with utility.
Low Pressure Blow Molding Machines
Running at reduced forces results in extended round durations. Yet costs for operation remain smaller. These setups fit simpler tasks like non-sparkling water bottles. There, detailed sharpness or robustness lacks importance.
Customization Options in Chinese Blow Molding Machinery
Adaptability matters greatly in the current trade setting. Chinese blow molding devices present wide adjustment traits. They back numerous making requirements.
Adjustable Neck Finish Systems
These setups enable changing between varied neck types without swapping the full mold group. This function helps manage multiple product codes and speeds up the switching between different product series.
Integration With Mold Cooling Systems
The modern cooling channels set within the mold frame can effectively enhance the heat dissipation performance. The honeycomb-shaped cooling channel structure not only optimizes the heat dissipation efficiency but also significantly shortens the bottle body molding cycle, thereby rapidly increasing the molding speed while ensuring the uniformity of the bottle body molding. This design is particularly effective in forming bottles with multi-chamber structures.
Compatibility With International Mold Standards
Plenty of Chinese-produced devices now match worldwide setups like KHS rotary arrangements. As an example, the PET blowing mold for KHS blow molding machine comes planned exactly for rotary blowing gear. It backs sizes from 50ml to 2500ml. High-quality imported aluminium materials are used for forming cavities.
Factors That Influence Machine Selection
Deciding on the correct blow molding device means weighing tech skills against your work aims.
Production Volume Requirements
Settings with large yields gain from total automatic multi-cavity devices. They increase flow to the utmost. Conversely, focused tasks could see semi-automatic versions as more wallet-friendly.
Bottle Design Complexity
When your bottles feature stamped marks or odd shapes, select devices that handle stretch-blow methods. Combine them with precisely set control systems. These assure consistent outcomes.
Material Compatibility
Every PET substance does not react identically to warmth or force. Make certain your picked device upholds particular kinds. Hot-fill needs resistant varieties. Oxygen blocks support extended shelf periods. Choose them if your good calls for those qualities.

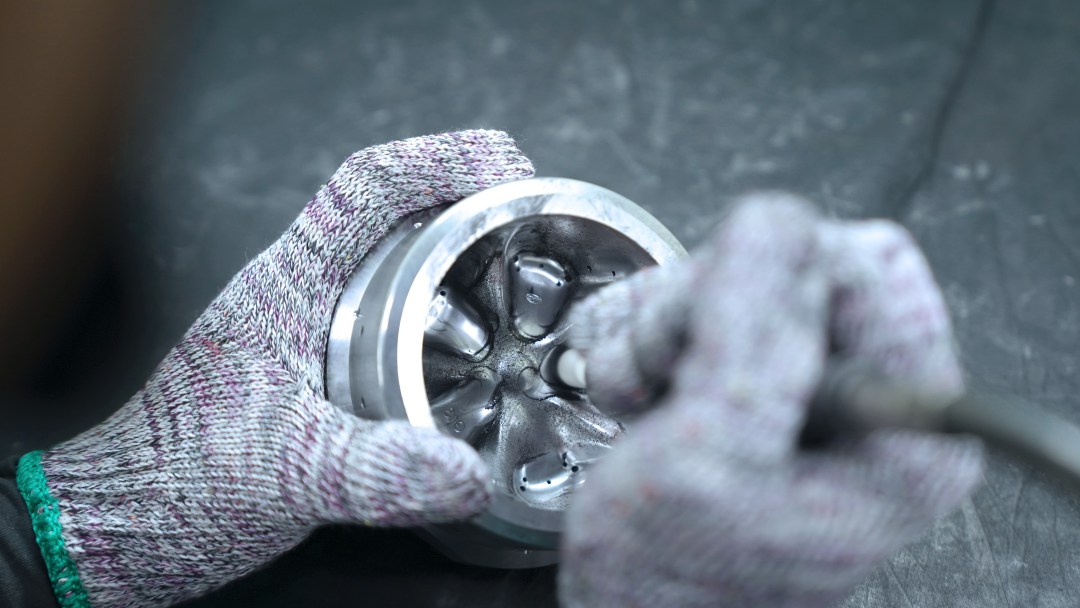

Maintenance Considerations Across Machine Types
The powerful protection performance safeguards your expense security and ensures the long-term stable operation of the device.
Routine Component Inspections
Regularly inspect the heating area, air valve and mold surface to detect any damage in a timely manner. This move can reduce unexpected downtime and avoid disruptions in the production cycle.
Mold Cleaning Protocols
Left-over deposits harm clearness and outline precision. Wash molds routinely with accepted techniques. This keeps good standards steady over groups.
FAQ
Q1: How do I decide between hot-fill and cold-fill blow molding machines?
A: The choice rests on your good’s fill warmth needs. Employ hot-fill devices if your drink needs germ removal above 85°C. If not, cold-fill arrangements meet needs for room or cooled fill items like water or CSDs.
Q2: Can PET blowing molds from Chinese manufacturers integrate with global equipment brands?
A: Yes. Consider molds like the PET blowing mold for KHS blow molding machine as examples. They stand created for exact fit with KHS rotary paths. This yields smooth function without further changes.
Q3: What lifespan should I expect from a PET blow molding machine?
A: A device under good care can surpass 10 years of ongoing function. Suitable maintenance—such as timed reviews and part changes—serves as the primary path to that duration.
