500ml PET Blowing Mold

Custom Engineering for Industrial Applications

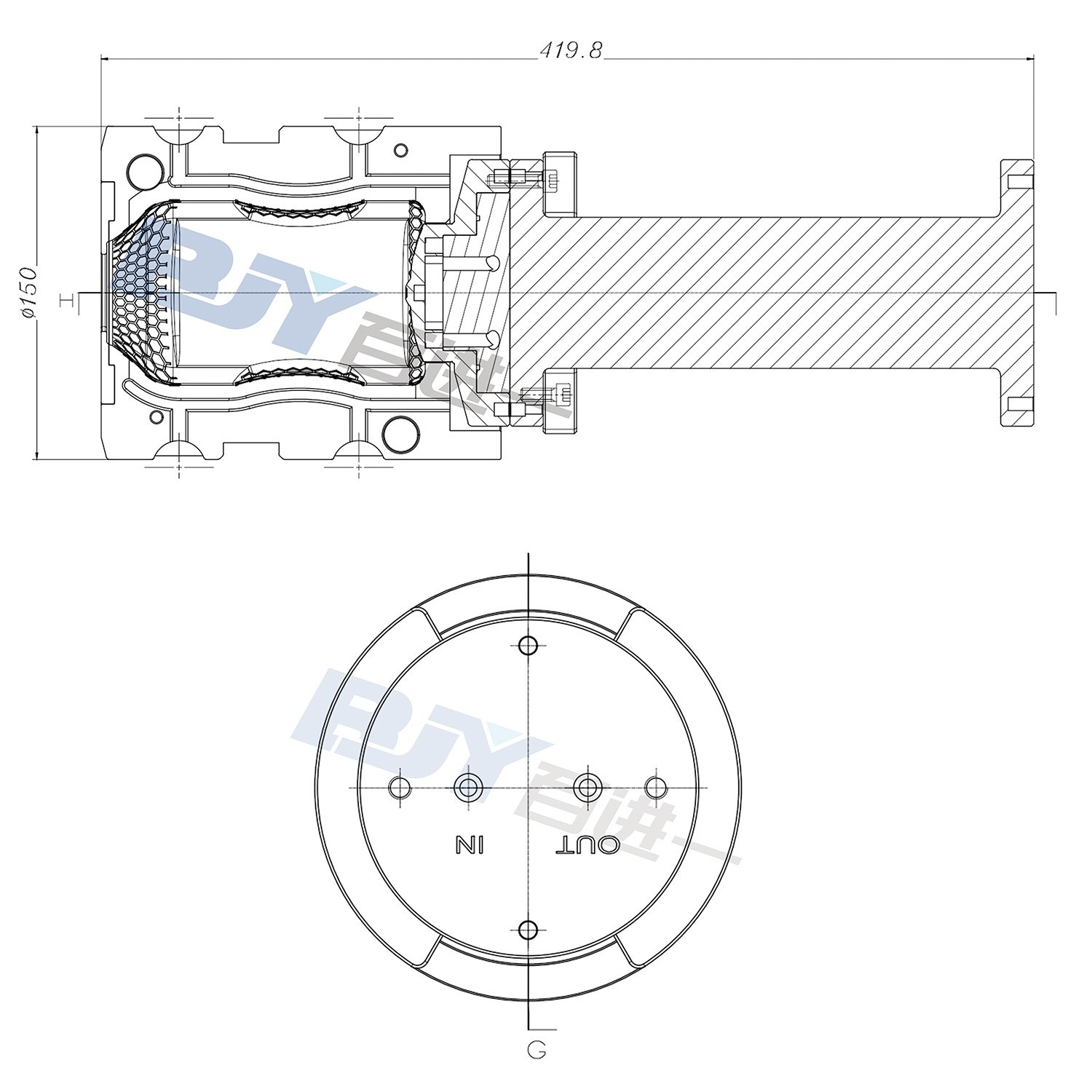

The beverage industry demands high-precision tooling that is adaptable to a wide range of production hardware. Baijinyi (BJY) addresses this need through the engineering of customized PET mold cavities. Each project, exemplified by the 150*419.6 mm technical specification, is developed following a rigorous assessment of the client’s machine parameters and bottle design goals. Since 2011, BJY has maintained a focus on technical excellence, supported by an engineering team with more than 20 years of industry experience. The primary objective is to achieve accurate mechanical compatibility with the customer’s blowing equipment, helping ensure stable mold operation and consistent bottle formation.

Material, Surface Treatment, and Venting Technology

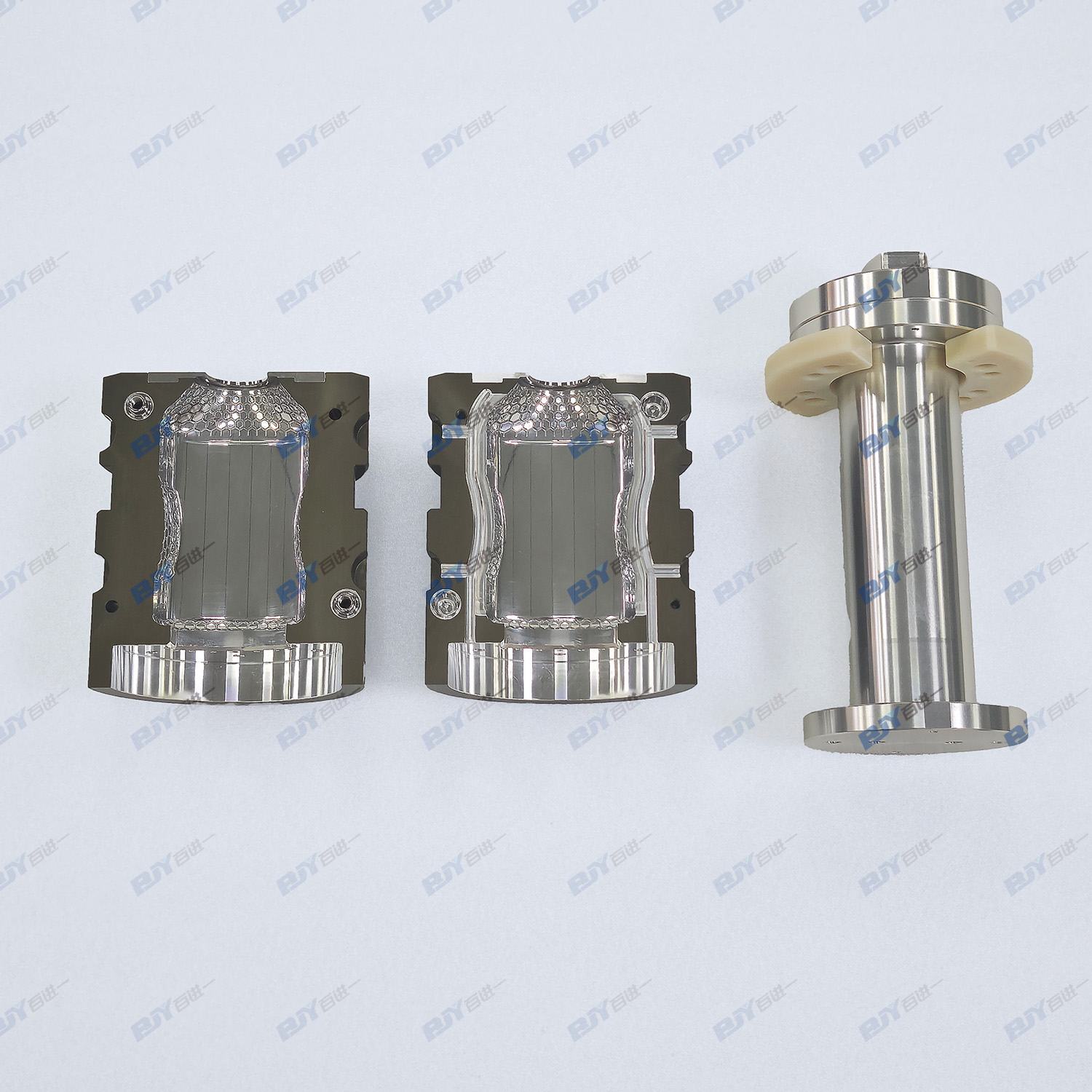

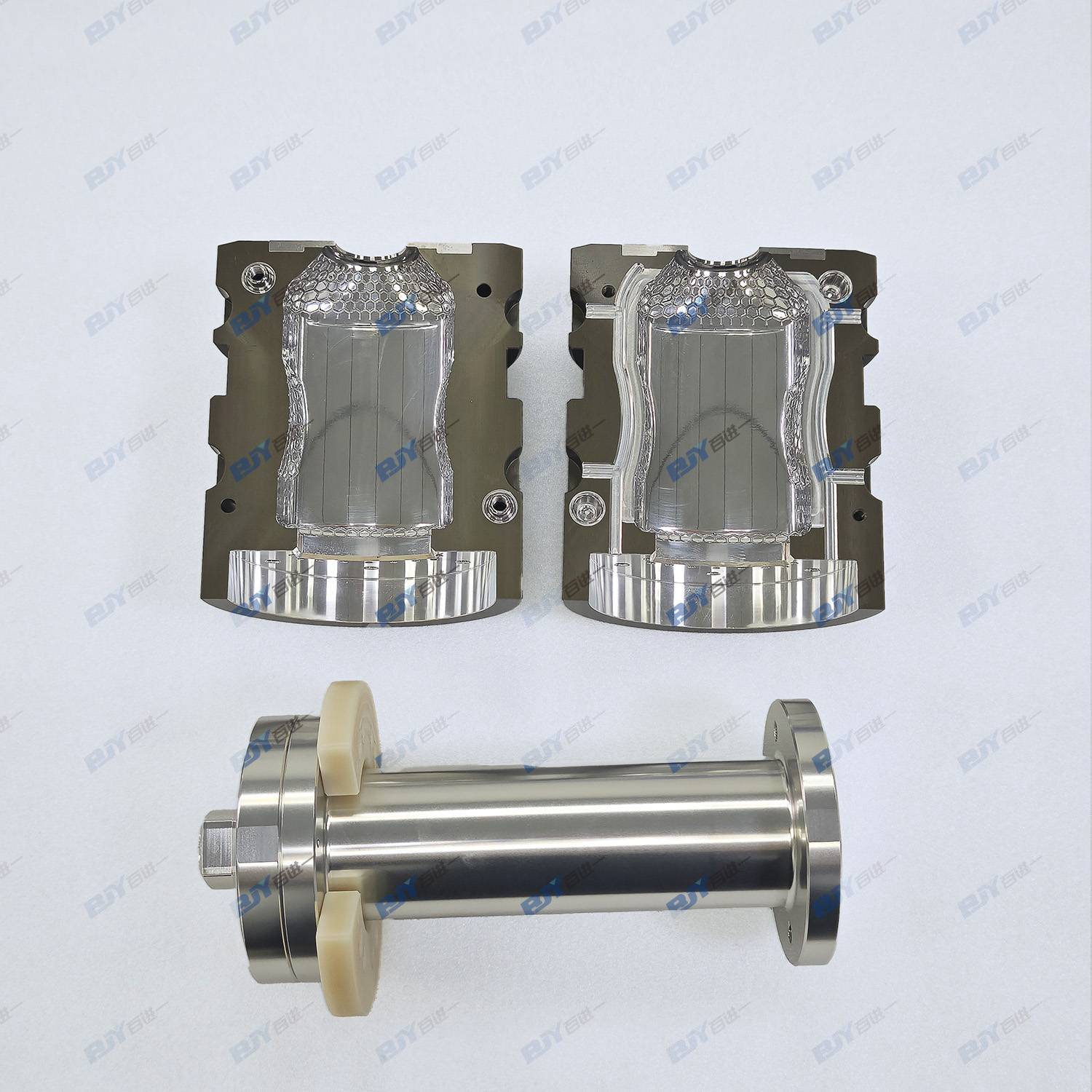

Material selection is a fundamental aspect of BJY’s manufacturing philosophy. We use high-quality imported solid aluminum bars for the cavity body, providing excellent thermal conductivity and supporting stable thermal management during high-speed production. The mold surface is enhanced through a hard-anodizing process that improves surface hardness, wear resistance, and corrosion resistance.

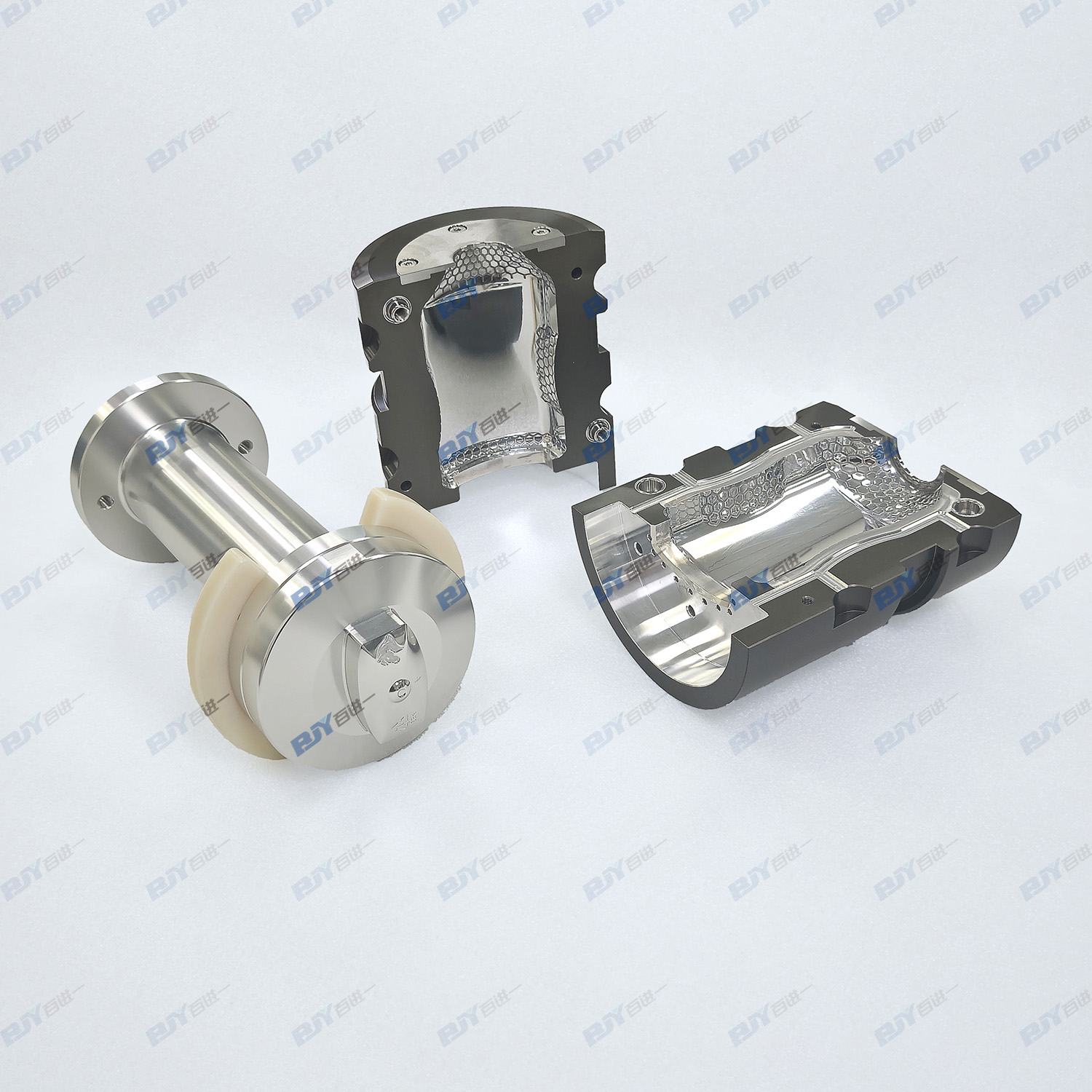

Furthermore, BJY integrates precise venting systems along the mold’s parting lines. These precisely machined venting channels facilitate efficient air evacuation during the blowing phase, helping the PET material conform properly to the cavity surface and reducing the risk of trapped air and localized forming defects.

Mechanical Compatibility and Lifecycle Management

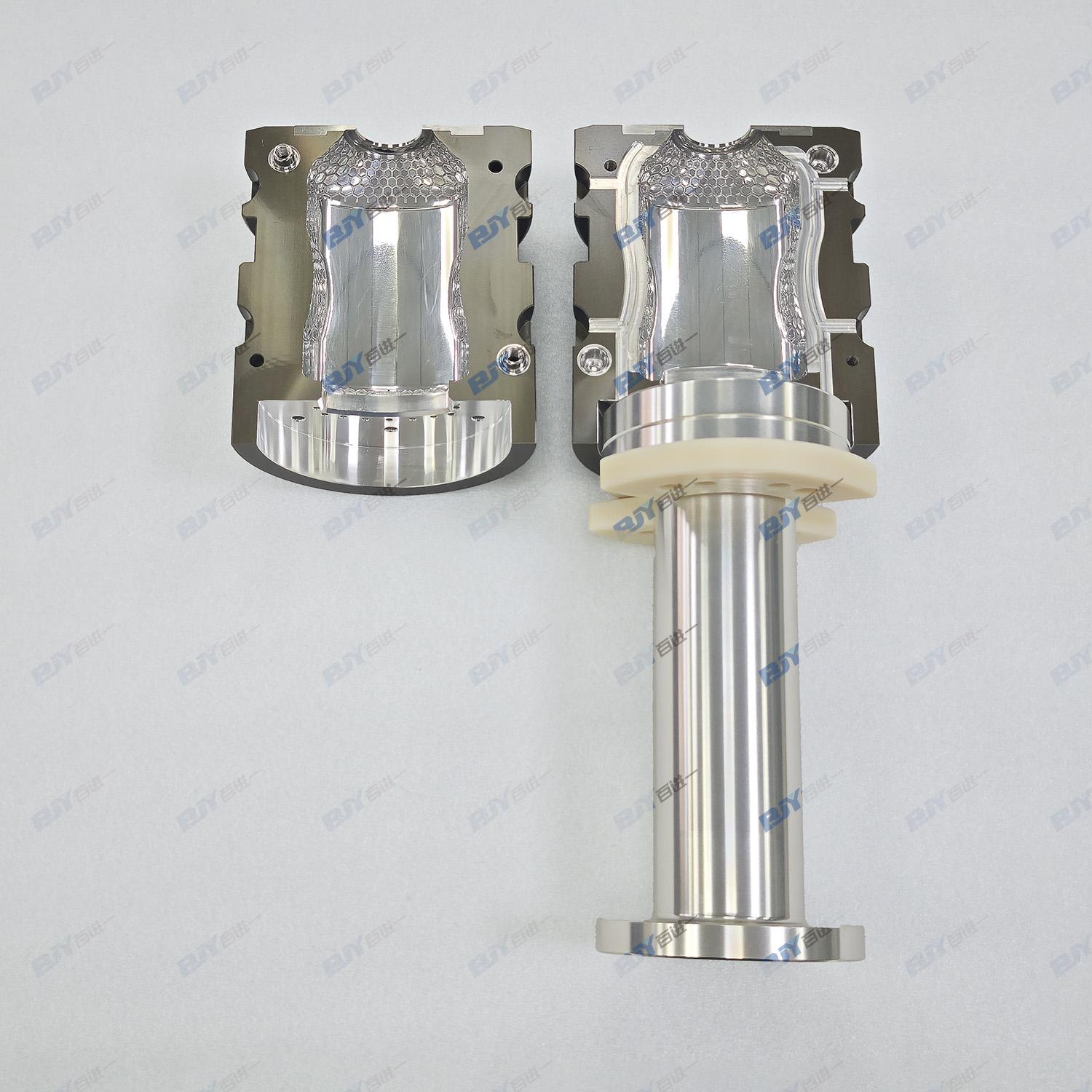

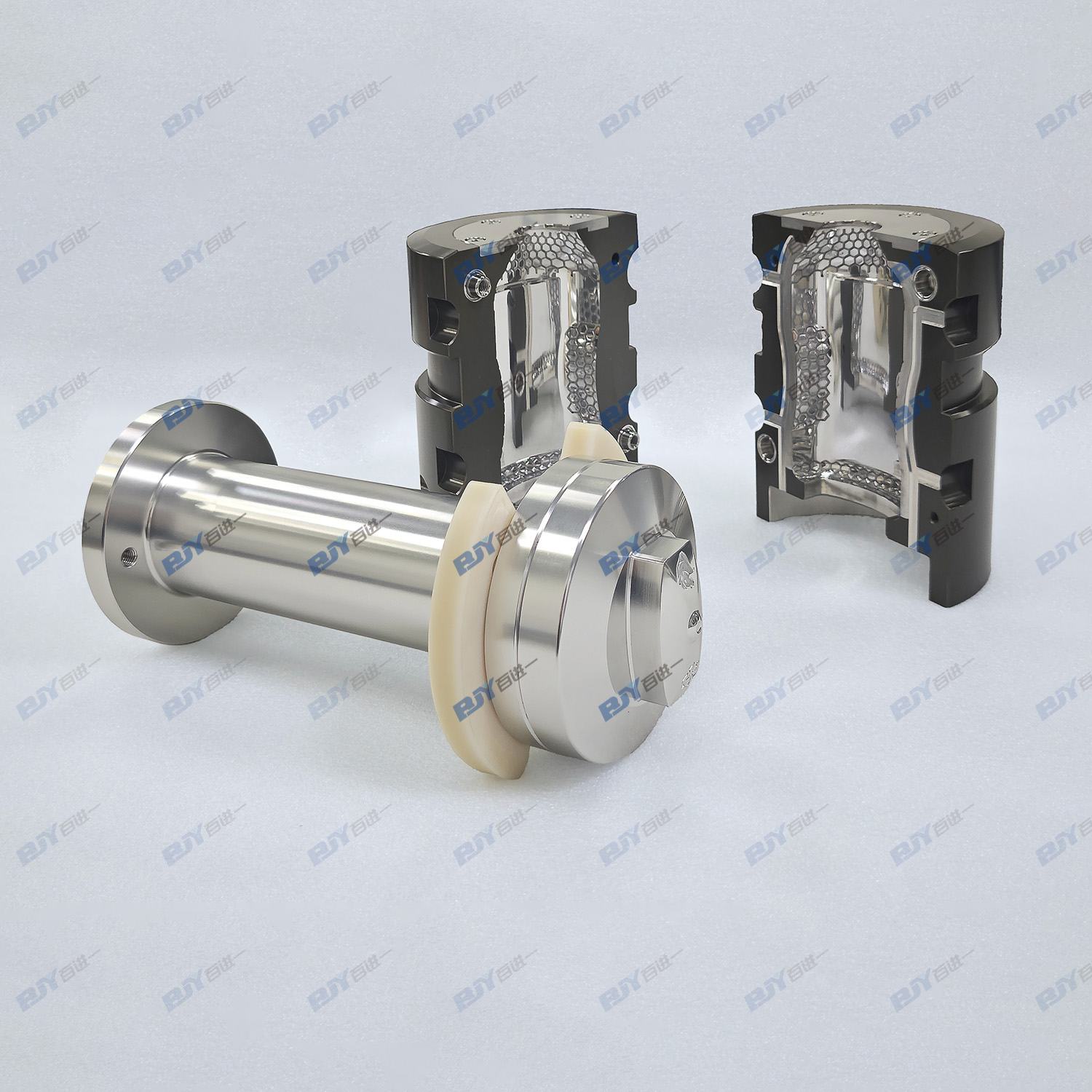

BJY’s design for 500ml mold cavities prioritizes ease of technical maintenance and long-term durability. The integrated Quick Change system allows for efficient mold format changes, directly contributing to stable production scheduling.

BJY applies precision CNC machining processes to maintain consistent dimensional accuracy and repeatable performance across customized cavities, according to project requirements. This helps each customized cavity achieve stable and reliable performance within the rotary blowing assembly.

Comprehensive quality control procedures, including CMM verification and surface finish testing, are standard for every piece of BJY tooling. We provide professional engineering support to assist beverage plants in optimizing their tooling assets and achieving reliable production outcomes.
