Hot filled Blowing machine for Sidel
Hot filled Blowing machine for Sidel
Hot filled Blowing machine for Sidel
Hot filled Blowing machine for Sidel

Hot filled Blowing machine for Sidel

Hot filled Blowing machine for Sidel

BJY PET blowing mold for Sidel hot filled blow molding machine stands out in high-speed rotary production. It targets big beverage makers who need tough hot-fill bottles every day. This mold uses trusted stretch-blow core technology. It heats PET preforms first, then blows clean high-pressure air inside. That way, bottles get perfect shapes with great high precision. BJY builds it for real durability under hot conditions. Smart structural innovations include heat-proof clamps and fast cooling paths. These keep walls even and stop shrinking when bottles cool after filling. BJY picks top materials – S136 steel for cavities and light A6061 for the base. Modern CNC and EDM work give mirror-smooth finish. Full custom services cover hot-fill or cold-fill styles from 50ml up to 2500ml. It fits water, fizzy drinks (CSD), hot juices (HR), clean-room packs, and cooking oils. BJY runs strict quality checks and holds ISO 9001 papers. So the mold works perfectly on Sidel machines right from day one.

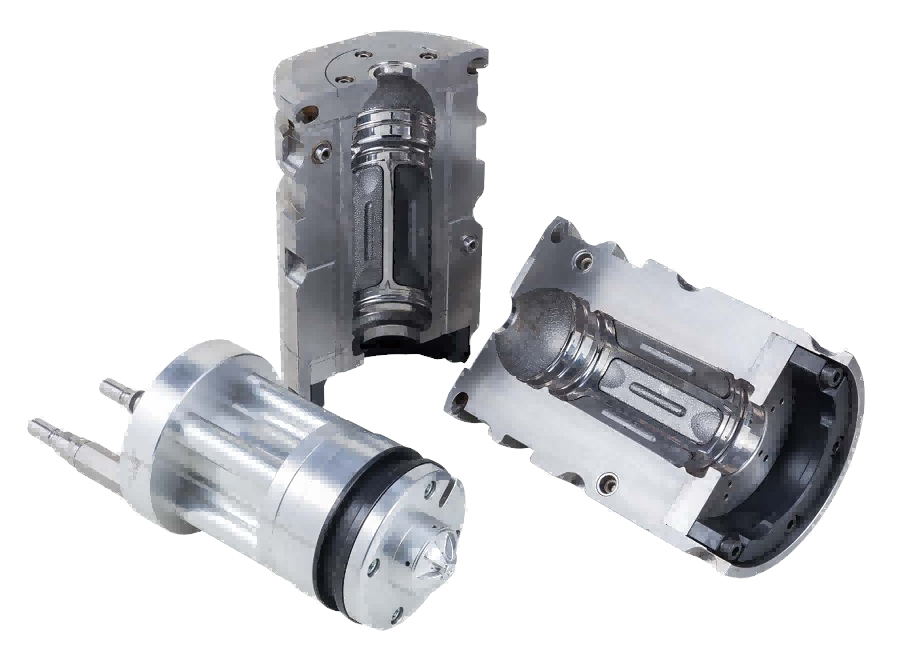

  • 适配Sidel设备热灌模 -Hot Filled Mold for Sidel Blow Molding Machine(1)

    Product Features

        High Efficiency and Compatibility: BJY PET blowing mold fits straight into Sidel hot filled blow molding machine rotary lines. It runs quick cycles and keeps perfect timing with original parts.

        Superior Product Performance: Special heat channels make walls thick where needed. This stops paneling or shape loss after hot filling.

        Quality Assurance and Durability: It stays strong in high-heat work. BJY tests every mold hard before it leaves.

        Energy-Saving Design: Better air paths and light base cut air use by 10-15%. This saves money and helps the planet.

  •     Ultra-High Precision Processing: Fine EDM and polishing hit tiny tolerances. Details and necks come out sharp every time.

        Corrosion Resistance and High Temperature Resistance: Strong coatings fight heat to 140°C and wet air common in hot-fill lines.

        Custom Service: BJY changes cavity shape, base style, or heat features to match exactly what you want.

    适配Sidel设备热灌模 -Hot Filled Mold for Sidel Blow Molding Machine(1)
  • Hot-Fill-Compatible Steel Blow Mould (1)(1)

    Product Parameters

    Basic Technical Specifications:

        Mold Type: Rotary PET Blowing Mold (hot-fill ready)

        Cavities: 1 per shell

        Applicable Preform Capacity: 50ml to 2500ml (finished bottle)

    Precision Manufacturing Parameters:

        Processing Accuracy: ±0.005mm

        Surface Roughness: Ra 0.2μm

        Mold Frame Flatness: ≤0.01mm/m

    Materials and Heat Treatment:

        Cavity/Core Material: S136 steel for cavity, A6061 for base

        Heat Treatment Hardness: HRC 48-52

        Surface Treatment: Mirror polish + heat-proof coating

  • Hot Runner System (support for preform heating):

        Temperature Control Accuracy

        Hot Runner Type: N/A main (air blow process)

    Cooling System:

        Cooling Method: Fast water + air circuits

        Cooling Cycle: 3-6 seconds

        Anti-Scaling Design: Easy-clean channels

    Adaptability and Certification:

      Compatible Equipment Brand: Sidel hot filled blow molding machine (Series 1, Matrix, Combi etc.)

      Bottle Mouth Standard: (PCO 1881, 30/25 heat-resistant etc.)

      Industry Certification: ISO 9001, food-grade safe

    This BJY PET blowing mold brings real heat strength and long life to Sidel hot filled blow molding machine lines. Contact BJY now for your custom quote and quick help.
