The Ultimate Guide to Extending the Lifespan of Your PET Bottle Blowing Molds

Every time you buy a PET bottle blowing mold, you purchase more than just metal. You purchase the heart of your production. In the B2B manufacturing arena, where downtime is directly equated to lost profit, the factors that determine your overhead are very tangible. Be it a high-speed rotary machine or a linear machine with specialized barrel configurations, your tool head tooling plays a critical role in determining your overhead. This guide delves into the technical variables to design and ensure that your molds run for millions of cycles while producing crystal clear bottles of the desired perfection to the customer.

Why Does Material Selection Determine Mold Longevity

The bottle blowing mold for PET bottles is a very strong structure made from specific materials. The structure endures intense pressure from compressed air, and frequent heating and cooling processes. Inadequate materials can deflect and develop cracks and distortions under the force of the compressed air.

High-Grade Aluminum and S136 Stainless Steel

The choice of the metal depends on the type of product you are aiming to manufacture. We select aircraft-grade aluminum alloy when you need to achieve very fast cooling and, consequently, shorter cycle times. Instead, we recommend the use of hardened S136 stainless steel for the injection preform molds for high-cavity molds or where the mold will be subject to corrosion. Indeed, this alloy provides the very high surface hardness (up to HRC30-35) that allows it to resist the mechanical stresses deriving from the millions of cycles to which the tool will be subject while always maintaining its original dimensions.

Advanced Surface Hardening and Anodizing

Pure metal is not enough for modern factory conditions. You need molds that are vacuum quenched and hard anodized. The hard oxide layer provides a barrier to preforms and prevents any corrosion from the inevitable buildup of sugary and/or acidic residues that are a staple of any beverage plant. We’ve seen our molds last over 50% longer with the anodized coating.

Superior Thermal Conductivity for Reduced Stress

Heat is a valuable resource as well as a hazard for your mold. As your plastic, or metal, does not always dissipate heat evenly in the structure of the mold it may end up with hot spots and as a consequence the metal will expand in unequal ways which can provoke appearance of fine cracks and a quicker wear. On the other hand, by having a material with a good thermal insulation, we can maintain a constant temperature in the mold, which leads to avoiding the curvature of the bottles and reducing the efforts of the clamping unit of the blowing machine.

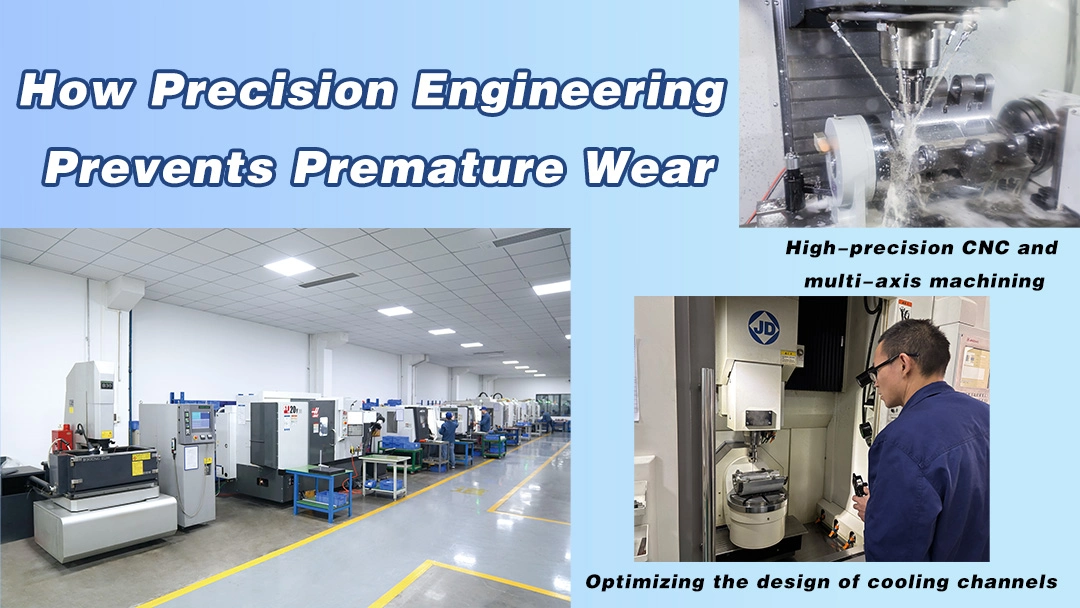

How Can Precision Engineering Prevent Premature Wear

Longevity isn’t about what you make your mold out of, it is about how you design it. You could be the strongest man in the world and have terrible blueprints, the steel would be inadequate but the design would also hold the key to your early demise.

Accurate CNC Machining and Multi-Axis Processing

Precision is the key to preventing wear and extending the life of your mold. Using molds manufactured on a 5-axis CNC milling machine guarantees uniform cavities with tolerances of ±0.01mm for optimal performance. The accuracy of the tool eliminates any deviations in clamping pressure on the parting surface of the mold. If there was some inaccuracy, the edges of the mold would ‘roll’ under the force of the clamping pressure and would very quickly degrade the integrity of the tool; and lead to ugly mold lines on your bottles.

Optimized Cooling Channel Design

Long lasting PET bottle blowing mold through effective cooling method Recently, there are more blowing mold designs adopted the bionic or honeycomb cooling method named as cooling structure of bionic or honeycomb, or commonly named as cooling structure of 3-in-1 for long lasting performance. This is through creating, by using cooling structure of 3-in-1 technology, an instantaneous and uniform cooling process inside the bottle cavity. This effectively shortens the time of being under high temperature for the mold and subsequently reduce the thermal stress of the mold. Hence, the mold is maintained in an optimal condition and reused for a much larger number of cycles.

Standardized Interfaces for Seamless Integration

A mold that does not fit well in your injection molding machine will vibrate and lead to micro-shocks that are detrimental to the health of the mold and the machine. A standard with quick-change interfaces that match up to the mounting plates of global manufacturers such as Krones, Sidel or KHS is required here. In this way, the injection mold can be “plug-and-play” fitted to the machine. This provides a precision fit that is free from the micro-movements that can lead to mechanical stress on the injection mould and machine over time.

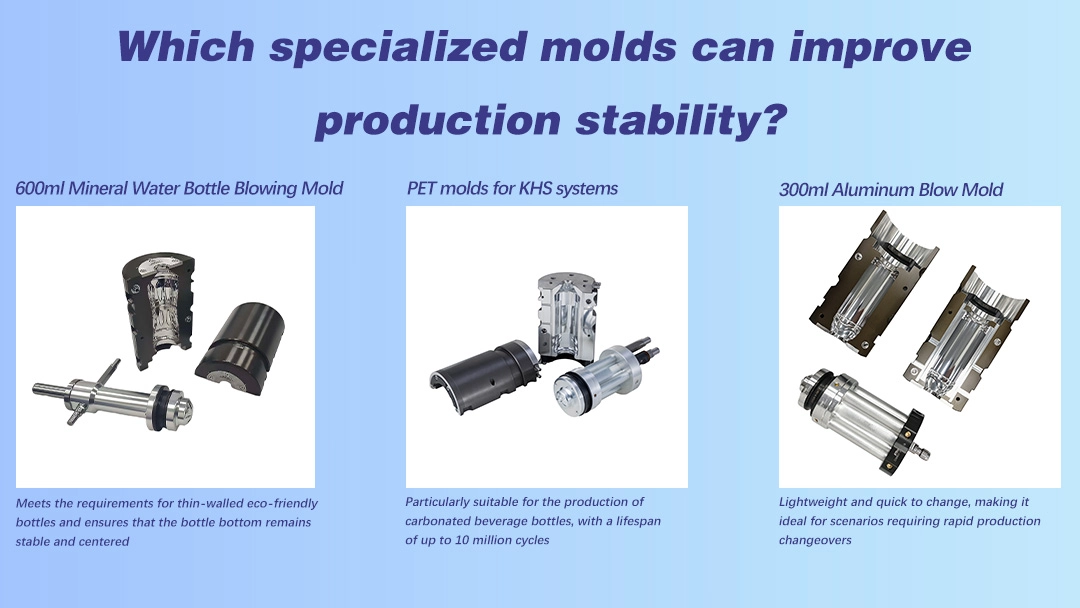

Which Specialized Molds Boost Production Stability

Choose the right tool for the job. The mold has to match the product. Not all PET bottle blowing mold solutions are created equal. Some are designed for high speed production, while others are designed with heat resistance in mind.

• 600ml Water Bottle Blow Mold: If you are running high-volume mineral water lines, this 600ml solution is your best bet for stability. It is engineered to handle the thin-wall requirements of modern eco-friendly packaging while ensuring that the bottle base remains perfectly centered, even at speeds exceeding 50,000 bottles per hour.

• PET Blowing Mold for KHS Systems: We have specialized PET bottles molds for KHS systems and all other blow moulding machines which blow bottles with exact tolerance of machines dynamic parameters. This helps to maximize bottle output. The strength of the mold is enough to withstand any pressure that the bottle may develop particularly with carbonated soft drinks, and it is designed to last for up to 10 million cycles.

• 300ml Aluminum Blow Mold: Our Aluminum Blow Molds are used when a product needs to be produced quickly and the cooling time is not critical. The aluminum is much lighter than steel and makes your product and the weight on your machines rotary platens much lighter. This allows for faster mold changeover times and is safer for your operator.





What Maintenance Strategies Ensure Continuous Performance

You can buy the best mold in the world but, unfortunately, a proper maintenance program is required to get the longest life out of that mold. Maintenance is a form of insurance on your mold.

Regular Cleaning and Lubrication Schedules

Every 72 hours or so, the molding surfaces and parting lines must be cleaned with medical grade alcohol. The fine dust that accumulates can be thought of as sandpaper for your shiny surface. Applying a food grade grease to the guide pins and bushings also prevents friction seizing which ensures the mold still opens and closes on the millionth cycle as smoothly as it did on the first.

Quarterly Waterway Inspection and Scale Removal

Water is the lifeblood of your cooling system but it can also be the bane of its existence. Over time, the minerals in the water evaporate and form hard deposits called scale in the waterways. This insulating layer severely reduces the heat transfer between the mould and the cooling system. It is recommended to check the waterways at least 4 times a year and clean them with a descaling solution to ensure that the heat transfer remains 100% efficient.

Professional Refurbishment and Component Replacement

Molds are modular. There is no need to send in the entire tool because one component has worn out. Many tool builders offer neck rings, cavity inserts and stretch rod limiters that can be replaced to revitalize an old tool at a fraction of the cost of a new tool. A professional rebuild can bring and old tool back to its original factory spec increasing the value of the original investment by 100% or more.

Why Partner With a Specialized PET Mold Manufacturer

While it’s tempting to choose a supplier based solely on price, there are so many other factors to consider that can impact not only your budget, but also the quality of your packaging and the overall performance of your product. A supplier should not just be a vendor; they should be your partner in liquid packaging that can help address the complexities that you face every day.

Tired of bad tooling and costly changeovers? Look no further than Foshan Baijinyi Precise Technology Co., Ltd. – your perfect PET tooling and parts supplier! Having 9 years of experience as a leading tooling manufacturer on PET field, we provide 100% high speed blowing molds and also precision injection preform parts and other products. Baijinyi technology is here to make your machine run with Humanized one stop engineering solutions for all types of PET Blow Moulding Machines, no matter Sidel, Krones or KHS or others, including a full 3D design of the bottle of your requirements with on-site debugging guaranteeing win-win solution for you.

One-Stop Engineering and Adaptation Services

The best manufacturers do not just sell a mold – they sell a total solution for your products and your production line. Provide a sample bottle or a hand drawn or computer drawing of your bottle and we will reverse engineer it and produce accurate 2D and 3D CAD drawings for your review and approval. We will work with you to assure that your mold can be put into production without any need for change to your infeed or outfeed wheels on your machine.

Global Technical Support and Proven Expertise

Manufacturing is a 24/7 business and your support should be also. Look for suppliers that have proven track records of manufacturing and exporting products to countries across Southeast Asia, Europe and the Middle East. Suppliers with a truly global mindset will be aware of the varying local safety regulations that differ to ILO and EU standards and have the technical expertise to address any issues that may arise at any time of the day or night.

Quality Assurance and Rigorous Testing Standards

You should not have to wait for a PET bottle blowing mold to reach the end of its design limits before it ends up on your production floor. Our leading edge tooling is verified and checked using Zeiss Coordinate Measuring Machines (CMM) for precision tolerances as low as 0.002mm. We also offer a Trial Run service with in-house production of bottles for you to examine and with full data report for your satisfaction and to be assured of the performance of the tool prior to full production.

Summary of Mold Care Best Practices

FAQ

Q: How many cycles can a high-quality PET bottle blowing mold typically last?

A: A well-maintained mold made from premium materials like S136 steel can exceed 10 million cycles. Even lightweight aluminum molds, if properly treated, can handle millions of runs effectively.

Q: What is the main cause of premature mold failure in high-speed lines?

A: The most common causes are poor thermal management (clogged cooling channels) and improper clamping pressure, which leads to misalignment and mechanical fatigue. Regular maintenance and descaling are the best preventions.

Q: Can I use the same mold for both hot-fill and cold-fill processes?

A: Generally, no. Hot-fill molds require specialized heat-resistant steel and specific cooling structures to withstand temperatures up to 95°C without deforming. Cold-fill molds are typically optimized for faster cooling and ambient temperatures.
