Mastering Injection Stretch Blow Molding for PET Bottle Production

The path from a compact plastic preform to a sparkling clear drink bottle placed on a shop display represents a rapid engineering achievement. For producers, the objective remains basic yet challenging: generate thousands of ideal bottles per hour with no problems. This technique, referred to as Injection Stretch Blow Molding (ISBM), depends on a fine equilibrium of warmth, air force, and mechanical exactness. When all elements align properly, manufacturing flows easily; however, if they fail to do so, you face heaps of discard and squandered power.

Maximizing your production line involves examining more than mere device adjustments. It centers on the equipment—the molds that truly define the bottle’s form. Superior molds achieve more than creating an appealing bottle; moreover, they sustain the full process operating swiftly, efficiently cooled, and consistently reliable.

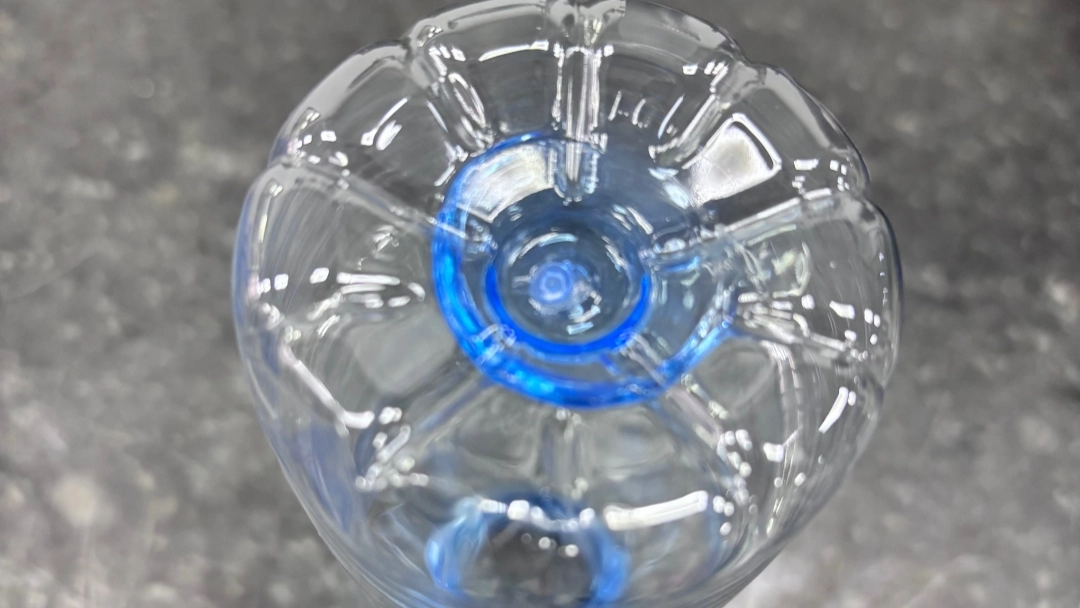

Why Is Mold Precision Critical for Production Efficiency?

If a mold fails to receive precise cutting, defects show up in the finished item nearly at once. For example, the bottle may appear somewhat hazy, or the wall depth might fluctuate greatly. These defects extend past surface concerns; in fact, they cause bottles to fail strength evaluations or seep at the top. Exactness ensures your discard percentage stays minimal and your buyers remain content.

Impact on Bottle Transparency and Quality

A significant portion of bottle clearness derives from the mold cavity’s exterior. At BJY, molds employ highly reflective polished exteriors to guarantee that bottles emerge vivid and see-through, attaining clearness percentages of 92 percent or above. Since the processing employs excellent precision CNC and abrasion methods, you prevent minor air voids and depressions that damage a bottle’s visual appeal. Ultimately, it concerns securing that flawless exterior right from the initial output.

Reduction of Cycle Times Through Advanced Cooling

Within this sector, moments equate to earnings. You cannot linger for a bottle to chill gradually. Molds constructed from aluminum composite perform well in this regard because aluminum extracts warmth far more rapidly than iron does. Furthermore, through the application of biology-mimicking or lattice-patterned cooling passages, the mold maintains a uniform warmth level. Consequently, this accelerates the hardening duration, which allows the bottle to firm up more quickly and enables you to extract it earlier to commence the following cycle.

Maintenance Savings and Operational Longevity

No individual enjoys pausing the assembly for fixes. For that reason, selecting resilient substances such as sourced aluminum or reinforced S136 steel proves transformative. These substances resist distortion or deterioration readily, even following millions of operations. Additionally, segmented configurations imply that if a single section of the mold sustains some damage, you can simply exchange that particular element rather than discarding the complete mold.

How Does Equipment Compatibility Streamline Operations?

A primary frustration for a plant overseer involves purchasing fresh apparatus and realizing it mismatches the current configuration. You ought not to reconstruct your entire unit merely to modify a bottle outline. Harmony serves as the key to an effortless manufacturing area, permitting you to alter setups without unnecessary turmoil.

Plug-and-Play Integration with Global Brands

While operating prominent units like Sidel, Krones, or KHS, you require molds that align in terminology. Molds crafted by BJY adhere firmly to the securing and warmth rationale of these global norms. This straightforward insertion method signifies that you can position a fresh mold frame within a Sidel platform or a Krones spinning arrangement, and it operates seamlessly—without requiring further design work or unit alterations.

Flexibility for Small-Batch and Large-Scale Runs

Purchaser preferences evolve swiftly, thus your assembly demands adaptability. Uniform connections and rapid-detach fasteners render style shifts considerably quicker than in past times. In numerous instances, you can transition from a 500ml to a 750ml bottle within approximately 10 to 30 minutes. As such, this capability permits managing modest promotional lots or temporary patterns without undermining your everyday yield.

Cost-Effective Retrofitting for Aging Machinery

Fresh units represent a substantial outlay. Occasionally, a more intelligent strategy involves revitalizing your existing apparatus. Through substituting deteriorated original molds with superior harmonious variants, you can genuinely enhance an aged unit’s function. It provides a means to obtain modern unit capabilities—such as accelerated chilling and enhanced bottle standards—lacking the modern unit’s expense.

What Are the Most Common Blow Molding Challenges?

Despite possessing optimal implements, situations can veer off course. You could step into the workspace and observe bottles developing a pale hue or bases positioned incorrectly. The majority of these difficulties relate to the interplay between preform warmth and the mold. Understanding how to detect them promptly averts numerous complications subsequently.

Troubleshooting Poor Transparency and Whitening

Should your bottles exhibit a somewhat misty quality, the preform most likely entered overly chilled. Conversely, a shimmering pale tone generally indicates excessive warmth within the heater. Yet another factor involves dampness in the air conduits—if you neglect a reliable air dehumidifier, those minuscule liquid particles will consistently impair the plastic’s sharpness.

Correcting Uneven Wall Thickness and Eccentricity

Have you ever grasped a bottle where one aspect seems substantially slimmer than its counterpart? This arises mainly because the extension bar lacks perfect centering or the air flow remains unbalanced. Therefore, you will desire to verify the positioning of the bars and ensure the preform warms consistently in the heater, thereby allowing it to extend uniformly across all aspects.

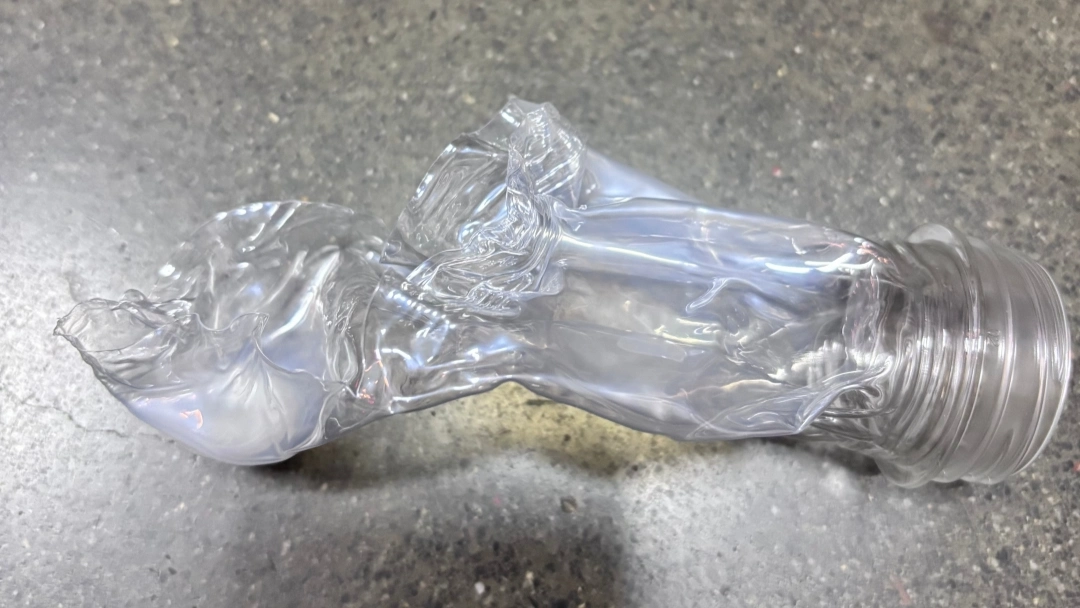

Preventing Bottom Piercing and Bottle Blowouts

A rupture matches its description precisely—the bottle bursts amid the procedure. This commonly occurs if the preform lacks thorough warming or if the extension bar fails to contact the mold’s base. In cases where the bar genuinely penetrates the preform’s underside, you probably must increase warmth at the foundation or inspect whether rod abrasion has rendered the end excessively pointed.

Recommended High-Performance Mold Solutions

Selecting the suitable mold relies on your unit and the contents you intend to fill. Be it rapid water assemblies or warm-filled beverages, possessing the appropriate implement resolves half the effort. Presented here are several dependable selections that BJY supplies for diverse systems:

500ml Blowing Mold for Sidel Systems

This particular item functions as a sturdy performer for swift spinning lines. It consists of aviation-quality aluminum and resilient S136 steel components, enabling it to manage continuous operations without faltering. Furthermore, it matches directly with Sidel-standard units, facilitating simple installation during operational periods.

PET Blowing Mold for Tech-Long Machines

If you operate Tech-Long equipment, this mold offers an excellent option. It has been adjusted to accommodate warm-fill methods—reaching up to 95°C—which fits ideally for teas and juices. Moreover, the pathway configuration optimizes wall uniformity, preventing those irritating slim regions.

PET Blowing Mold for SMF Equipment

For operators utilizing SMF bases, this mold delivers a highly dependable, seepage-resistant answer. It excels particularly when handling numerous bottle configurations, as the divided framework simplifies transitions considerably.

FAQ

Q1: How long do these PET molds actually last?

A: The majority of our superior molds receive a rating for roughly 10 million operations. Naturally, this hinges on diligent upkeep—such as consistent washing and verifying the cooling water circulation—which yields substantial benefits over extended periods.

Q2: Can I use the same mold for both carbonated drinks and still water?

A: Formally, bottles for carbonated contents require a distinct structure to withstand the inner force. Although the mold foundation could harmonize, the cavity form and wall depth allocation typically modify expressly for effervescent varieties to avert bottle distortion.

Q3: What’s the lead time if I need a custom bottle design?

A: Regarding tailor-made molds, you generally anticipate around 15 to 25 days contingent upon the design’s complexity. Should you merely require conventional attachments or links available in storage, those dispatch promptly, frequently within mere business days.
